Description

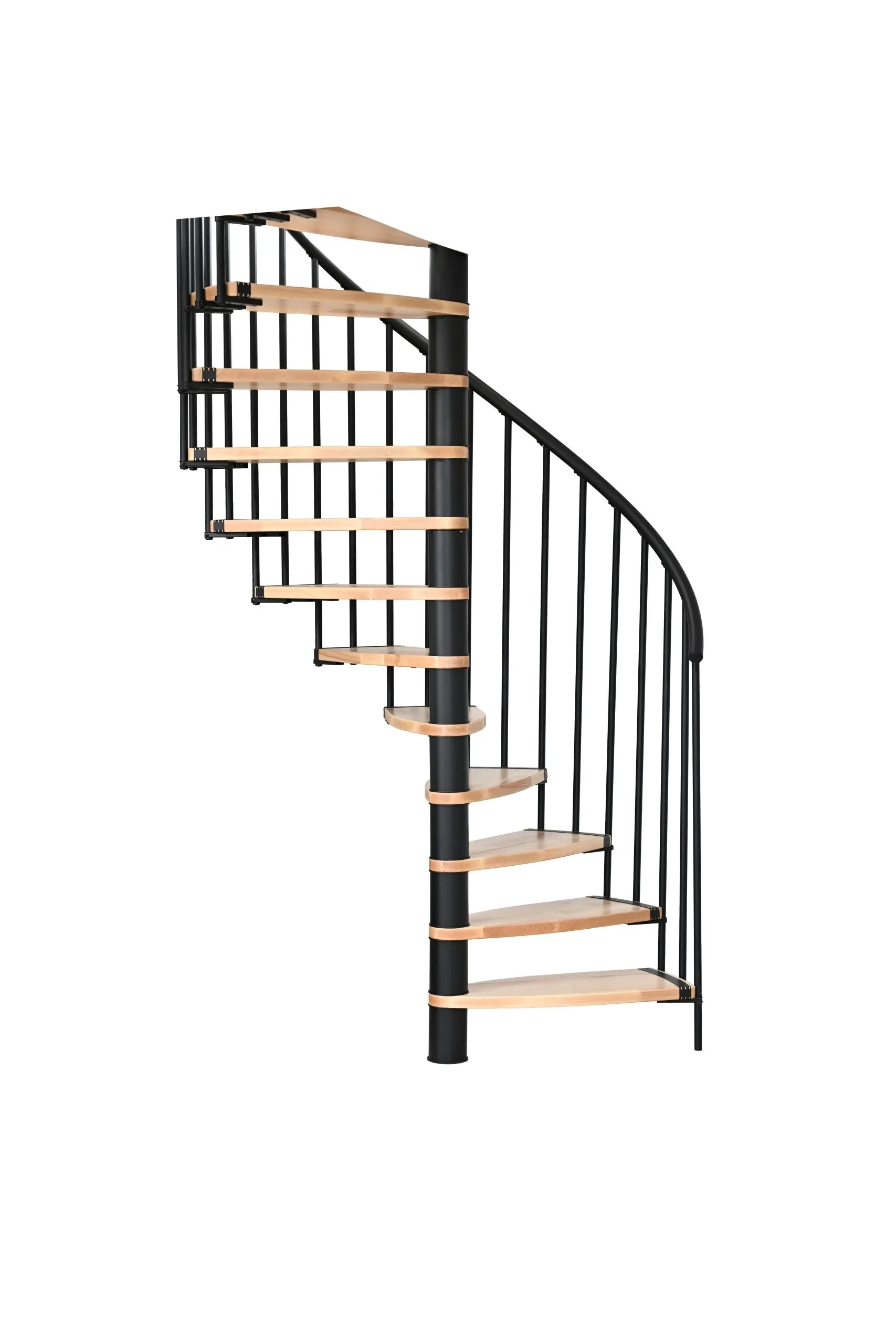

Flexible and adjustable spiral staircase with solid beech wood steps
To fit the ladder into the ceiling opening, simply shorten the steps and join and cover the interface with a metal strip
Suitable for ceiling hatches measuring 101-155 x 57-84 cm
Powder coated metal parts and PVC handrail available in black, gray or white
Maximum floor height: 3055 mm

671 / 5,000
Lacquered beech
Powder coated steel fuse tube in grey, black or white
Powder coated steel columns in grey, black or white
Handrail in grey, black or white PVC
Number of stages 13
Mass
Shell dimensions 1010-1550 x 570-840 mm
External radius 930-1470 mm
maximum floor height 3055 mm
maximum floor height with height extension of 3290 mm
maximum floor height with two height extensions 3525 mm
Step per step 190-235 mm
Step depth 150-230 mm
free passage width 410-680 mm
Step thickness 35 mm
Rotation for level 20th
Spindle diameter 108 mm
Railing height 1000 mm
Balustrade diameter 22 mm
Handrail diameter 40 mm
Width of the metal strip on the steps 40 mm
